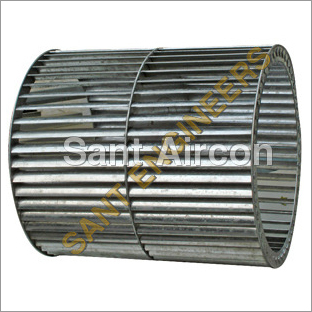

Dual Inlet Blower Wheel

Dual Inlet Blower Wheel
Dual Inlet Blower Wheel
Product Code : 07
Product Description
DUAL INLET BLOWER WHEEL

Sant high efficiency fans are specially designed to give high volume and pressure whilst maintaining smooth vibration free running.

Fan Construction
These fans are supplied with forward curved vanes and are manufactured from high grade rust resistant galvanized sheet; Fan vanes are mounted on to a common back - plate and locked on to a holding shroud. A substantial aluminum / ms cast hub is rigidly connected to the back - plate precision machined to receive the fan shaft.

Scroll
These are also manufactured from galvanized sheet; the scroll wrapper foxed with spot welding to the side plates, as it is leak - proof and provides better strength and rigidity, for the proper centering of fan - shaft and hydraulically formed vane, the scroll side plates are cut on nibbling with the help of fixtures. Side frames are made from heavy gauge GI or CR sheet and are bolted to both side of scroll: this gives overall strength to the scroll assembly and allows mounting the fan in various orientations

Shafts
These are manufactured from high quality steel and grinded to close tolerance for precision fit to fan hub and bearings, key way at both ends for pulleys and at the fan location point.

Bearings
All fans are supplied as standard with imported make flanged ball bearings.

Balancing

All fans are dynamically and statically balanced on FIE make Computerized Balancing machine.

Fans available in Galvanized Steel, Aluminum and Stainless - also with frp coated for cooling towers or other purpose.

SFC - A Series

Double Inlet Double Width Centrifugal Blower

  • Size: 250mm onward and upto 1000 mm

  • Flow: Upto 40000 CFM

SFC - E Series

Double Inlet Double Width Centrifugal Impellers

  • Size: 180mm onwards and upto 760 mm

  • Flow: Upto 20000 CFM

SFC - H Series

Single Inlet Centrifugal Impellers

  • Size: 10" x 6" / 10" x 4"

  • Construction: SS, GI, Galvanized CRC

  • Hub: SS, MS, CI

Applications

  • For Air Conditioning in Commercial and Industrial places

  • Combustion air for burners and industrial water heaters.

  • Cooling electrical equipment or parts from heat curving ovens and kilns.

  • Pressuring cabinets, vaults or rooms.

  • Blow - off systems to remove moisture from parts prior to painting, coating or packing.

  • General ventilation of rooms or factories

  • Food processing

  • Circulating air in ovens and dryers to eliminate cold spots.

  • Forced ventilation of AC and DC motors, traction motors and electrical cabinets.
